Central® 交/直流 5~24V 微型水泵 | |||||||||||||||||||||||||||||||||||||||||||||||
超小型直流水泵可OEM應用 | |||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||

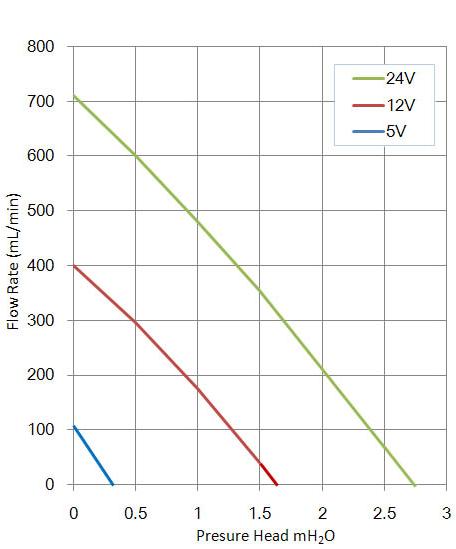

Model: N3 5~24V 60Hz 100% Flow Rate vs. Head Pressure |
|||||||||||||||||||||||||||||||||||||||||||||||
Performance of pump can be adjusted by input voltage, operating frequency and duty cycle. | |||||||||||||||||||||||||||||||||||||||||||||||
Model:N3 5V DC 60Hz 80% Curve | Model:N3 | ||||||||||||||||||||||||||||||||||||||||||||||
Performance of pump can be adjusted by input voltage (5VDC), operating frequency (60Hz) and duty cycle (80%). |
|||||||||||||||||||||||||||||||||||||||||||||||
規格: |
溫度範圍(液體) : | 10°C ~ 70°C, max -20°C ~ 80°C, 50°F ~ 158°F, max -4°F ~ 176°F | ||
---|---|---|---|
存儲溫度: | -20°C ~ 80°C, -4°F ~ 176°F | ||
設計液體溫度: | 60°C, 140°F | ||
相對濕度: | 可低於 85 % | ||
可接受的液體: | 純淨水(蒸餾水) ,研究羥基解決方案,以及其他流體的要求 | ||
進,出口尺寸: | 4 mm ID, 7 mm OD, 1/4" barb | ||
泵的尺寸: | 14.5 mm D x 64 mm L, 0.57" D x 2.5" L | ||
Pressure Head: | 0.2 ~ 4 mH2O, 2 ~ 40 kPa, pending input parameters | ||
工作電壓範圍: | 5 ~ 24 V AC/DC (AC: less controller) | ||
電流: | 100 ~ 800 mA | ||
額定功率: | 4W ± 10% | ||
噪音值: | 30 dB ± 15% | ||
重量: | < 30 g, < 1 oz | ||
使用壽命: | 44,000+ hours | ||
驅動信號: | PWM | ||
泵浦型式: | 碳無刷,微型往復運動 | ||
安裝: | 接管且/或直接沈水 | ||
定位: | 任何角度,最好水平 | ||
保護: | 阻塞和過熱保護 | ||
遵守: | 美國 UL 60950,信息技術設備標準 | ||
|
對於原始設備製造商使用,可定制,請聯繫我們獲得更多信息
